Home /Products/Interactive Touch Screen/Skyworh OEM ODM 65 Inch 8 Inch Android 11 Core 8G+128G All In One Interactive Whiteboard

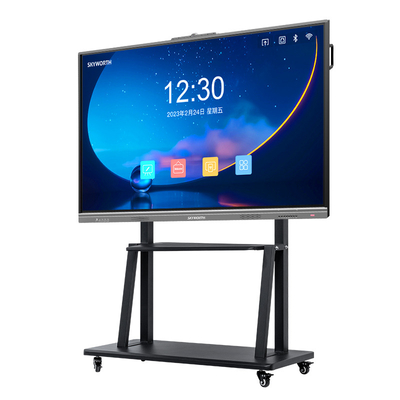

Skyworh OEM ODM 65 Inch 8 Inch Android 11 Core 8G+128G All In One Interactive Whiteboard

1 piece
MOQ
Skyworh OEM ODM 65 Inch 8 Inch Android 11 Core 8G+128G All In One Interactive Whiteboard
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Indoor
Color: Black
Panel Size: 65/75/85/98 Inch
Supplier Type: Original Manufacturer
Model Number: 75K6
Use: Advertising Publish, Retail Store, Shopping Mall, Exhibition Hall, Education
Pixels: 3840*2160
Specification: Touch Screen, Kiosk
Product Name: Smart Interactive Whiteboard
OS: Android 11
RAM: 8G
ROM: 128G
CPU: 8 Core Cortex A73*4 + A53*4,2.2GHz
Aspect Ratio: 16:9
Packing Dimension: 1600mm*215m*1025mm
Touch Panel Surface Protection: 4mm Thickness Tempered Glass
Infrared System: Multi 20 Points IR Touch
Basic Infomation
Model Number: 75K6
Payment & Shipping Terms
Supply Ability: 100000 Piece/Pieces per Month
Product Description
Product Description
Display Parameters
Size
65
Lamination process
Zero Post
Backlight Type
D-LED
Backlight specifications
OD18
Display area
1428.5(H)* 803.5(V)mm
Display Resolution
3840×2160
Brightness
Average ≥350cd/㎡
Contrast Ratio
1200: 1
Response time
8ms
Viewing Angle
≥178°
Refresh rate
60Hz
Glass Properties
Anti-glare features
Anti-glare
Thickness
4mm tempered glass, impact resistant
Hardness
≥7H
Light transmission
≥90%
Touch parameters
Touch Technology
Infrared touch control, anti-blocking
Touch Points
Dual system 20 points
Touch Resolution
32768×32768
Touch accuracy
Minimum identification diameter 2mm
Positioning accuracy
±1mm
Touch height
≤2.5mm
Interface Drivers
USB + UART
Light resistance
100K Lux
Support System
Android/Win7/Win8/Win10/Linux/Chrome
Maintenance method
Front dismantling maintenance
Writing style
Fingers or non-transparent objects
Electrical parameters
System Version
Android 11.0
CPU
8 cores, Cortex A73*4 + A53*4, 2.2GHz
GPU
Mali-G52
Memory
8G Byte
Storage
128 GByte
Speakers
15W * 2 (forward-facing)
OPS Power Supply
DC 18V/6A
Input power
AC 220V, 50Hz
Input Current
1.5A
Standby power consumption
<0.5W
Interface specifications
Front button
Single POWER button
Front Interface
Full-featured USB TYPE-C*1
Rear input/output interface
Android USB3.0*2、RS232*1、TF*1、TOUCH USB*1
Rear input connector
HDMI IN*2、LAN IN*1、MIC IN*1、VGA IN*1、VGA AOUDIO IN*1、DP IN*1
Rear output interface
LAN OUT*1, AOUDIO OUT*1, SPDIF OUT*1, HDMI OUT*1
Power connector
Pinnacle interface×1
AC Switch
Boat switch×1
WIFI Module
Internet access
2.4G & 5G dual-band WIFI6 module
Hotspot / Screen Casting Function
2.4G & 5G dual-band WIFI5 module
Bluetooth Module
2.4G BT5.2 module
Wide range of applicable scenarios
1)Meeting rooms/rooms, including: local meeting rooms, remote video conference rooms; 2)Training institutions, including: off-campus training, academic training, vocational training, promotion training, etc; 3)Other markets, such as: display rooms, corporate multi-function rooms, party building activity centers, etc.
Packing&Shipping
Shell color
Upper, left, right black, lower black plus iron gray two-color
Material
Metal aluminum (front) + iron back cover (rear)
Features
Narrow bezel, low touch height, two-color oxidation process, 1 safety handle
VESA Hole Position
400*500mm
Other
Front round metal power button, TYPE-C port, inside and outside corner design
Bare metal size
L*W*H=1485mm*84.6mm*904.9mm
Include hangers size
1485mm*109.1mm*904.9mm
Package Size
1625mmx230mm*1025mm
Wall hanging hole position
4-M8 Screw hole 500mm×400mm
Net weight of the whole machine
45kg
Weight with package
54kg
Annexes
Remote Control
1pc
Wall Hanging Bracket
1 set
Capacitor pen
1pc
Power cord
1 x 3m three-core
Instruction manual
1 copy (including certificate of conformity / warranty card)
Environmental specifications
Operating temperature
0℃~45℃
Storage temperature
-20℃~60℃
Working humidity
<90% No condensation
Storage humidity
<95% No condensation
Implementation Standards
GB4943.1-2011
Length of use
18 hours x 7 days
