Home /Products/Interactive Touch Screen/Business. Education.Training.Office. Security 65 75 85 86 98 100 110 Inch Interactive Flat Panel Smart Whiteboard 110 Inch For Meeting Conference School Classroom Education

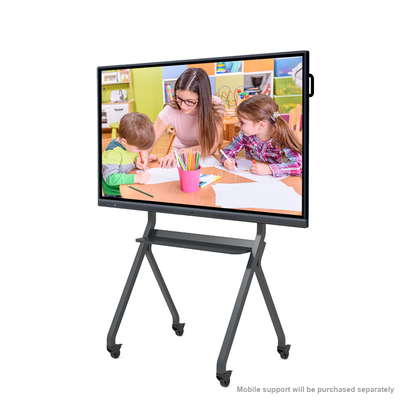

Business. Education.Training.Office. Security 65 75 85 86 98 100 110 Inch Interactive Flat Panel Smart Whiteboard 110 Inch For Meeting Conference School Classroom Education

1 piece
MOQ
Business. Education.Training.Office. Security 65 75 85 86 98 100 110 Inch Interactive Flat Panel Smart Whiteboard 110 Inch For Meeting Conference School Classroom Education
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: IFP-CM-H1-2
Folded: NO
Whiteboard Type: Interactive Whiteboard
Weight: N.W.: 89.5 Kg; G.W.:110 Kg
Color: Black, Gray
Aspect Ratio: ‘16:9
Panel Type: LED
Panel Size: 98 Inches
Resolution: 3840*2160
Packing Dimension: 2357*1478*215mm
Writing Method: Pen/finger Touch
Product Dimension: 2218*1318*101mm
Screen Size: 98 Inch
Product Name: Interactive Flat Panel
Operation System: Android + Windows Dual Systems
Model: T982
Chip Brand: Amlogic
CPU: Quad-core Cortex-A55
GPU: Mali-52
Storage: 4G+32G
Touch Screen: 20 Point IR Touch Panel
Certificates: CE/FCC/ROHS/ISO9001/ISO14001
Application: Business. Education.Training.Office. Security
Basic Infomation
Certification: CE/FCC/ROHS/ISO9001/ISO14001
Model Number: IFP-CM-H1-2, T982
Payment & Shipping Terms
Packaging Details: carton+foam+wooden case
Supply Ability: 200 Piece/Pieces per Day
Product Description
Global Recruiting Agents
Production Process
Product Paramenters
LCD Panel
Size
98"
Panel Brand
BOE,LG,CSOT,AUO
Screen Assembly Process
Frame/Zero Bonding Technology
Type
TFT-LCD S-PVA
Resolution
3840 × 2160 (UHD) @60hz, 4K UHD screen
Brightness
450-500 cd/m² (brightness can be customized)
Contrast Ratio
1400:1
Visual Angle (horizontal/vertical)
178°/178°
Response time
8ms
Visual area(mm)
2157*1212.4 mm
Color gamut (NTSC)
72%
Backlight
WLED
Display scale
16:9
Life time
50,000 hrs
Andorid Motherboard
Model
T982
System version
Android 11.0
CPU
Quad-core ARM Cortex-A55
GPU
Mali-52
Chip brand
Amlogic
Storage
4G+32G/8G+64G/8G+128G(Optional)
Input Ports
Touch USB,RJ45,AV IN,HDMI 1,HDMI 2,RS232,Android USB 2.0,Android USB 3.0
Output Ports
AV OUT,Earphone,SPDIF OUT
Video
MPEG-1/2/4,AVS2 MP,H.264,H265,VP9
Infrared touch characteristic
Touch Points
20 Points
Glass Type
4mm Tempered Glass
Glass transmittance
> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Infrared induction lines (W D)
32767 × 32767
Positional accuracy
More than 90% of the touch area is 2mm
The interface definition
USB 2.0(Full speed)
Touch the strength
Zero pressure touch
The light resistance
YES
Induction life
6 million times
Response time
<8ms
Power supply mode
Full duplex usb-powered DC +5V up to 500mA
Power Supply
Power consumption (typical value)
650W
Input voltage
AC100-240V~(+/-10%),50/60Hz,
Standby power consumption
≤0.5W
Switching power supply
European standard 220V two - phase three - wire system
Mechanical Specification Parameters
N.W.(kg)
98.5 Kg
G.W.(kg)
110.0 Kg
Product size(W x H x D)
2218*1318*101mm
Package size(W x H x D )
2357*1478*215mm
Shell material (face frame/back shell)
Plastic/Sheet metal
Shell color (face frame/back shell)
Black/Gray
Installation Methods
Wall-mounted, Mobile bracket
Cooking Way
Temperature-controlled fan dissipates heat
Environment
Working temperature
0℃~50℃
Working humidity
20%~80%(No condensation)
Storage temperature
-20℃~60℃
Storage humidity
10%~90%(No condensation)
Display mode
S-ips, often black display, transmission
Maximum service time (hours/day)
24 hours
Features
Audio Output Power
2x15Ω/8W(built in)
Support for input mode
Finger/Pen
The attachment
User manual
Manual, warranty card, certificate of conformity
Cable
The power cord
Others(optional accessories)
Remote control, Wall mount,Mobile bracket,HDMI cable,USB touch cable,Markers,Magnetic stylus,Camera&Microphone
Products Description
Company Introduction
Professional Manufacturer for Interactive Flat Panel
Established in 2015, Dongguan Chumei Electronic Technology Co., Ltd. is a very big & professional manufacturer about interactive flat panel,touch screen kiosk,advertising displays and other digital signage products in China.The factory which covers an area of more than 20,000 square meters is with ISO9001 and ISO14000 certificate.Also,most of our products are passed the CE,CCC,RoHS, and FCC certification.

Quality is our company’s reputation,we take much care about every detail related to the quality.Before shipment,all the products will be tested in the aging room for 4-8 hours,including 2 hours in the automatic high-temperature testing rooms at 40-50 centigrade.

We’ve great advantage about OEM/ODM service because of our strong R&D team and manufacturing capacity.Our monthly production capacity is about 20,000pcs.So far,our products have been exported to over 50 countries,including USA,Mexico,UK,Germany,France,Spain,Italy,Poland,Australia,Russia,Kazakhstan, Uzbekistan,Saudi
Arabia,Qatar,Japan,Korea,India,Brazil,Peru,South Africa,Nigeria and so on.

We pay much attention to the fast after-sales service and consider it as one of our key advantages. We have a professional team of international after-sales engineers, who can provide quick response to any problems encountered by customers. You can find our engineers at any time.

Looking forward to working with you in the future, and we will do our best to make you satisfied with the common interests.
Certifications
Customer Feedback
FAQ

Q1: Is your company a real manufacturer?

A: Our company is the professional manufacturer in Gaobu Town,Dongguan city, you are the mostly welcomed to visit our factory at any time.

Q2: Can you provide OEM/ODM service for the all in one interactive flat panel?

A: Yes,well supported.including software, packaging, product logo, etc., Our productions mainly are for OEM and ODM orders.

Q3: What is the MOQ of interactive flat panel? What's the lead time?

A: We have some items in stock , you can order 1pcs for test, the goods can be delivered within 3-7 days for small orders, and the production time about 15 -20 days for more than 100pcs

Q4: How can I trust your product quality?

A: Our warranty time is 1 year,Our products comply with ISO9001&ISO14000 quality system and CE/FCC/ROHS standards,From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. All our products pass strict QC inspection in the production process. In particular, All products need to complete 72-hour aging test to ensure no problems before shipment.

Q5: What's your after-sale service?

A: We have the professional sales and technique team to support you, most important, our engineer could do you favor online or onsite. you will get our reply within 24 hours.You will find us when you need.

Q6: What is your payment term?

A: You can pay us by T/T, credit card, Western Union, PayPal, Alibaba Trade Assurance; L/C is acceptable too. All of them will at least 30% deposit in advance, and the rest of 70% will paid before delivery.

Q7: If you are not online, how can I contact with you?

A: If I'm not online please check the following information, you can send me email or send message through Whatsapp or Wechat.
