Home /Products/Smart Interactive Whiteboard/Meeting/School 100 Inch Touch Screen Monitor Teacher 4mm Tempered Glass 10 Point Infrared Screen Digital Interactive Whiteboard

Meeting/School 100 Inch Touch Screen Monitor Teacher 4mm Tempered Glass 10 Point Infrared Screen Digital Interactive Whiteboard

2 Sets
MOQ
$2,000.00(2 - 10 Sets) $1,800.00(>=11 Sets)
Price
Meeting/School 100 Inch Touch Screen Monitor Teacher 4mm Tempered Glass 10 Point Infrared Screen Digital Interactive Whiteboard
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Whiteboard
Whiteboard Type: Interactive Whiteboard
Folded: NO
Model Number: LED100H8Q
Product Name: Digital Smart Whiteboard
Application: Meeting/School Teaching
Material: Aluminum Alloy Frame
Size: 55/65/75/86/98/110 Inch
Certificates: CE/CCC/FCC/ROHS/ISO9001
Function: Office School Home
Keyword: Writing Board White Board
Operating System: Android/Windows 7/8/10
Logo: Accept Customized
Packing: Customized Packaging
Basic Infomation
Certification: CE/CCC/FCC/ROHS/ISO9001
Model Number: LED100H8Q
Payment & Shipping Terms
Packaging Details: Strong quality carton box with plywood case Selling Units: Single item Single package size: 2483*3768*1493 mm Foam +PP bag+ carton Single gross weight:97KGS
Supply Ability: 1000 Piece/Pieces per Day
Product Description

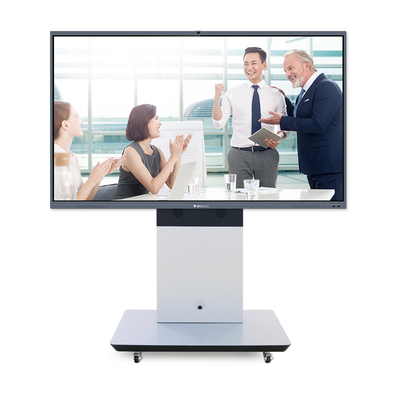

100 Inch Touch Screen Monitor 4mm tempered glass 10 point infrared screen digital interactive whiteboard
Product Description

Design Features

1. It adopts all-aluminum alloy frame structure, anodized surface technology, ultra-narrow frame, rounded corner design. 2. 4mm anti-glare tempered glass. 3. Support 20 points IR touch writing experience. 4. The OPS host module adopts a pluggable structure design, which is convenient for inspection, maintenance and upgrade. 5. Dual-channel PC/Android shared interface, 1 TOUCH-USB, 1 HDMI interface for users to expand 6. One-key start button: Power, Input, Menu, V+, V-, ECO, Home, and independently configured OPS computer channel switching buttons, easy to understand and operate. 7. Built-in 8 mega pixels camera, six-array microphone, 8m pickup distance. 8. The machine intelligently senses the changes in the ambient light and lighting then automatically adjusts the screen brightness to achieve the best display effect in different lighting environments, effectively protecting the eyesight of teachers and students, and achieving energy-saving effects. 9. Intelligently identify the signal source, and automatically jump into the port channel when the external signal is received. 10. Support the pull-up touch menu at the bottom machine, full-channel annotation, board in board, two-color writing, brightness adjustment, screen shots, and quick whiteboard operations and etc. 11. Smart cloud annotation, QR code scanning and sharing, mobile screen projection, wireless screen, remote meeting, VIP reception and other functions. 12. Laser making logo.
Screen parameters
Size
65”
75”
86”
100”
Type
ADS
Response time
8 ms
Display ratio
16:9
Display size (mm)
1428×804
1650×928
1895×1066
2159×1214
Resolution
3840（H）×2160（V）
Pixel pitch (mm)
0.372×0.372
0.429×0.429
0.4935×0. 4935
0.5622×0. 5622
Refresh rate
60Hz
60Hz
60Hz
120Hz
Color brightness
1.07B(10bit)
Color gamut
72%
Contrast ratio
4000:1
1100:1
1200:1
1200:1
Viewing angle
178°(H/V)
Backlight
DLED
Screen brightness
350cd/m2
350cd/m2
330cd/m2
350cd/m2
lifetime
≥30000h
Interface
HDMI in
3
USB 2.0
3
Touch
2
HDMI out
1
USB 3.0
3
VGA in
1
Audio in
1
SPDIF
1
RS232
1
Audio out
1
RJ45 in
1
Wifi
Version
802.11 a/b/g/n/ac
Operating frequency
2.4GHz/5GHz
Operating distance
0~12m
RAM
4GB
Remark
Realize this function through the wireless module SI02
Power
Size
65”
75”
86”
100”
Power input 100-240V~50/60Hz
2.5A
3.0A
5.0A
7.5A
Power consumption
250W
300W
500W
750W
Standby power consumption
≤0.5W
Environmental factory
Operating Temperature
0℃~40℃
Operating humidity
10%~90%RH
Storage temperature
-20℃~60℃
Storage humidity
10%~90%RH
Altitude
≤5000m
PC system (optional)
PC Model
MT31
PC Type
Ultra-thin pluggable Intel Core series modular computer
CPU Configuration
 i5，DDR4 8GB，M.2 solid state drive 128GB (SSD)
i7，DDR4 16GB，M.2 solid state drive 256GB (SSD)
Graphics
Integrated Intel® HD Graphics
Sound card
Integrated HD stereo sound card
Built-in system
Windows 10 Enterprise Edition
HDMI output
1
USB 2.0
2
USB 3.0
2
Microphone input
1
Audio out
1
PC interface
120 pins
Size
Size
55"
65"
75"
86"
100"
Display size （inch/mm)
1210×680
1428×804
1650×928
1895×1066
2159×1214
Overall size/Weight W×D×H（mm）/kg
1262×782×85
/26
1489×906×89
/37.5
1710×1029×89
/52.3
1957×1169×90
/69.8
2245×1323×90
/102
Packing size/Weight W×D×H（mm）/kg
1428×220×878
/36
1656×204×1050
/49.8
1886×210×1196
/66.2
2134×210×1334
/89.4
2483×376×1493
/136
QTY of containers(pcs) 20'GP/40'GP/40'HQ
102/236/254
79/183/197
59/137/148
53/123/133
20/47/50
Application Scenario
Company Profile
Enterprise
Guangdong Deyuan Technology Co., Ltd. is a modern high-tech enterprise specializing in the research and development, production and sales of intelligent display products, which was established in Guangzhou in July 2006. And currently owns the proprietary industrial park in Guangzhou Huadu Automobile City. It covers an area of 30 acres, with a construction area about 40,000 square meters. There are 3 subsidiary companies: Guangzhou JAV Electric Appliance Co., Ltd., Guangzhou Ruizhi Intelligent Technology Co., Ltd., and Guangzhou Xianyou Intelligent Co., Ltd., . The company owns brands JAV, Wanbao and AIWA. JAV is the company's own brand and won “Guangdong Famous Brand”. At present, it is a top brand merchant of JD, Tmall and Suning, with total sales volume of more than USD50 million annually. In the past, Aiwa was a brand as the same reputation as Sony. Now it is still a very famous international brand in the eyes of the older generation of consumers. Now authorize us to produce TV and as global sales. Wanbao is a brand of Guangzhou Wanbao Group Co., Ltd., which is a state-owned enterprise of China. The company has eight production bases across the country, and has established nine Sino-foreign joint ventures. It is a close partner of Panasonic, Hitachi, Mitsui, and Electrolux. In 2019, Wanbao was the China's top 500 manufacturing companies ranked 214. Wanbao's brand and products have won many honorary titles such as “China Well-known Trademark” and “China Famous Brand”. In 2018, Deyuan Technology cooperated with Wanbao Group and became the commercial display production base and global sales center of Wanbao. With Wanbao brand, Deyuan technology mainly undertakes project orders from domestic governments, schools and other projects. We also promote the brand into foreign markets and accept OEM/ODM projects for foreign customers. Our company pays close attention to product quality and system construction, and has successively obtained certifications as ISO9001, ISO14001, 3C, ROHS, CE, and CB. We also got numerous patent certificates, copyright certificates, and software copyright certificates in the field of smart commercial display products. At present, Deyuan Technology is serving more than 100,000 customers in China, with after-sales service outlets all over the country. Thanks to the high quality, our products are also popular in overseas markets.
Certifications
Making process
Recommend Products
Exhibition
FAQ
Q:Are you the factory or the trading company? A:we are the factory in Huadu District, Guangzhou, near the Guangzhou Baiyun International Airport. OEM or ODM service (including model and software system) are provided by us. Q: What's your MOQ? A: Generally, our FOB MOQ is 5-10 sets(It depends on the models), but small sample order 1pcs is acceptable. Q: How long is delivery time? A: Normally, the delivery time is 5-15 days according to the order quantity/ model/ size of the screens. Q : Do you have inventory? A : In order to ensure the delivery time, we usually have 1000 UNITS of various size and model for normal model per month. Q: How long is the warranty for the product? A:The warranty period is 1 YEAR for complete machine, but our open cell are A grade LG screen, service life usually is 8-10 years. Provided 1% spare parts: ISO:9001 international quality management system certificated, provide free spare parts to do the maintenance if there are defects in the warranty period. Q:What payment method your company accept? A:We accept most of the payment methods, it is mainly by TT/Western Union.
